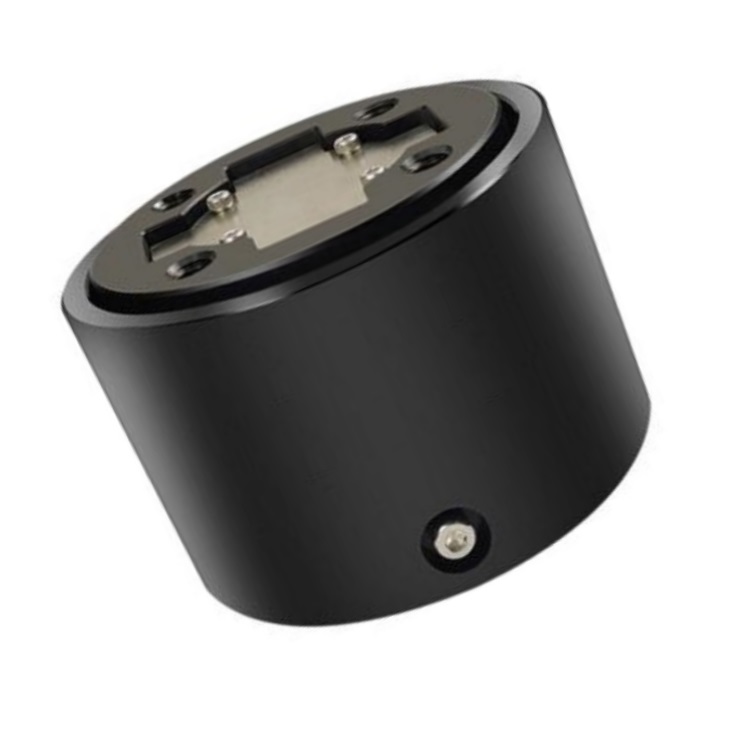

LCX6011
SAINTBOND
Product Introduction:
◎6061 aluminum alloy, epoxy treatment;
◎High precision and sensitivity;
◎ Large range, strong ability to resist eccentric load;
◎ Independent research and development, high cost performance;
◎Analog output, which can be used with collector;
◎Structural decoupling design, small coupling between dimensions;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;
Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value |
Capacity FxFyFz MxMyMz | 100,500N 1/5/10/20Nm | Insulation Resistance | ≥2000MΩ/100VDC |
Sensitivity | 0.5～2%F.S | Excitation voltage | 3～10V |
Comprehensive accuracy | 0.1～0.5%F.S | Temp. compensation range | -20～+70℃ |
Nonlinear | 0.3%F.S | Operating temp. range | -20～+80℃ |
Lagging | 0.3%F.S | Safety Load | 120%F.S |
Repeatability | 0.3%F.S | Ultimate Overload | 150%F.S |
Creep (30 Minite) | 0.02%F.S/10℃ | Material Science | Aluminium Alloy |
Temp. sensitivity Drift | 0.03%F.S/10℃ | Degree of protection | IP65 |
Zero Temp. drift | 0.03%F.S/10℃ | Cable size | Φ6×3000mm |
Input impedance | 350/700±5Ω | Appearance Dimension | Φ70×50mm |
Output impedance | 350/700±5Ω |
| Product name | LCX6011 Multi Axis Load Cell Manufacturers 6-Axis Standard Capacity Force Torque Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
