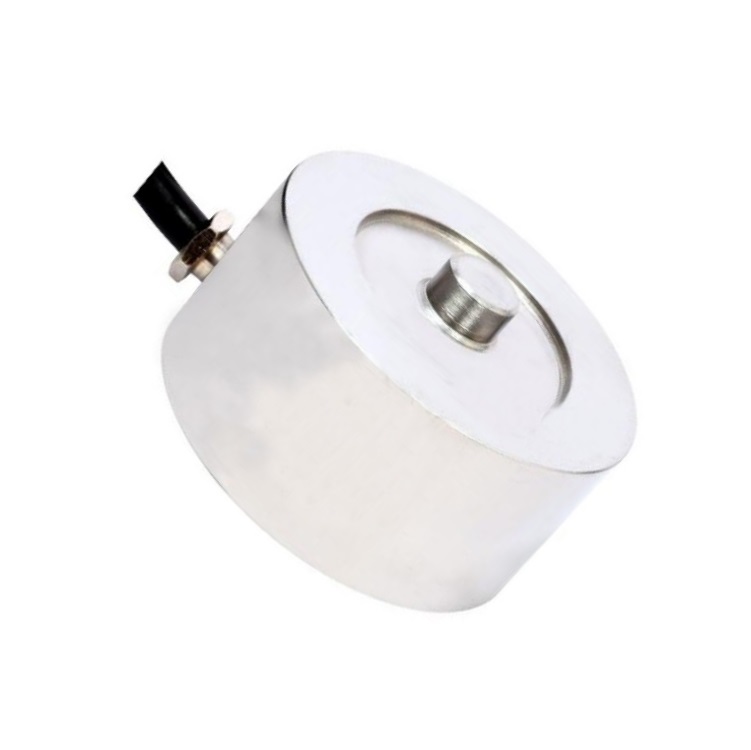

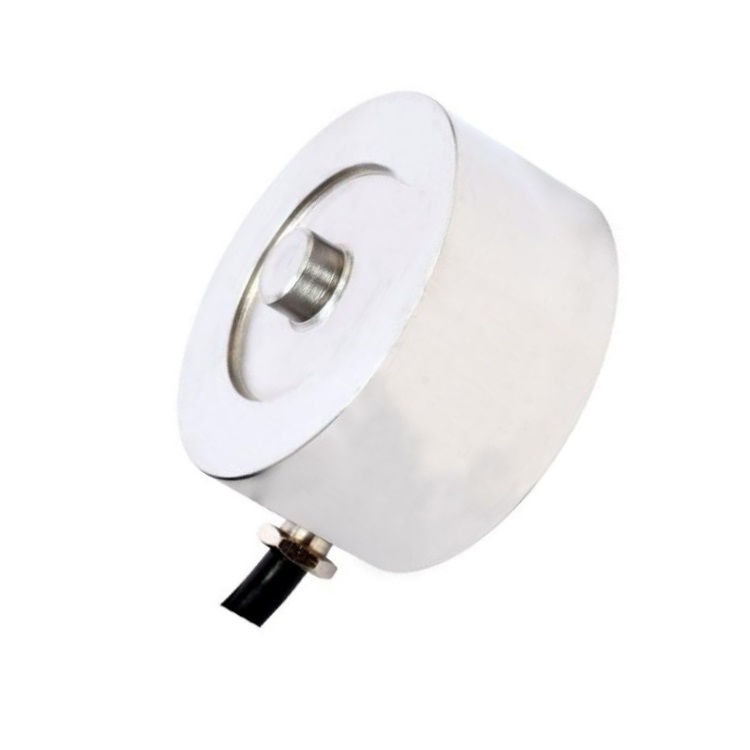

LC536
SAINTBOND
Features :
◎Protection to IP67;
◎Low Profile,high anti-interface;
◎Suitable for motion weighing;
◎Alloy / stainless steel construction;
Application:
◎Pharma machinery;
◎Automation industries;
◎Suitable for testing equipments;
◎Customized design available on request;
Dimension:
Capacity | A | B | C | D | d | F | E | M |
(Ton) | (mm) | |||||||
0.1/0.2/0.5t | 50 | 25 | 5 | 13 | 32 | 34 | 42 | M4×0.7 |
1/2/3/5t | 60 | 30 | 5 | 12 | 36 | 42.5 | 50 | M6×1 |
10/20t | 118 | 45 | 5 | 20 | 52 | 65.4 | 90 | M8×1.25 |
30/50t | 155 | 50 | 5 | 44 | 90 | 103 | 125 | M12×1.75 |
100t | 205 | 60 | 7.5 | 65 | 130 | 145 | 165 | M16×2 |
Technical Parameter:
Rated Load: | 0.1/0.2/0.5/1/2/3/5/10/20/30/50/100t | ||
Sensitivity: | (2.0±1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.3% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.5% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.5% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 750±10Ω | Element Material: | Alloy / Stainless Steel |
Output Resistance: | 700±2Ω | Cable: | Length=L:6m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | LC536 Button Type Compression Load Cell Button Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
