LC5008 Load Cell Suppliers Button Type Micro Weighing Load Cell Sensor

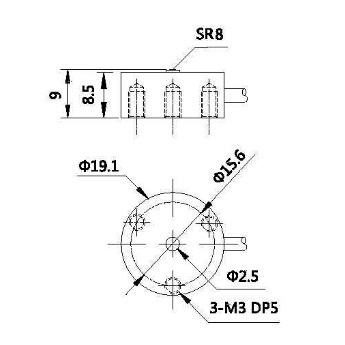

Dimension:



Description:

LC5008 Miniature compression load cells are made of advanced strain gauge technology. These load cells are designed for applications in a space limited area.

The capacities of LC5008 start from 5kg to 50kg. The measuring accuracy is 0.2%R.O. (R.O.= Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.

LC5008 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.



Features:

◎Miniature Compression load cells;

◎Capacity:5kg,...,50kg;

◎Accuracy:0.2%R.O;

◎Super micro structure;

◎Aluminum construction with surface anodized/stainless steel construction;

◎Environment protection class:IP65;



Applications:

◎Flat mounting weighing systems;

◎Force measuring in a narrow space;



Technical Data:

Model	LC5008	Excitation,Recommended	≤6VDC
Rated Capacity	5/10/20/50Kg	Operating Temp. Range	-10－+40℃
Accuracy Class	X	Safe Overload	120%R.C.
Rated Output	2.0±0.5%mV/V	Insulation Resistance	≥2000MΩ(50VDC)
Zero Balance	±0.1 mV/V	Cable,Length	ø3mm×2m
Input Resistance	350±10Ω	Hysteresis Error	±0.2%R.O.
Output Resistance	350±10Ω	Creep in 2 Min.	±0.2%R.O.
Linearlty Error	±0.2%R.O.	Temp.Effect on Output	±0.2%R.O./10℃
Repeatability Error	±0.2%R.O.	Temp.Effect on Zero	±0.2%R.O./10℃

Product name	LC5008 Load Cell Suppliers Button Type Micro Weighing Load Cell Sensor
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
