| Quantity: | |
|---|---|

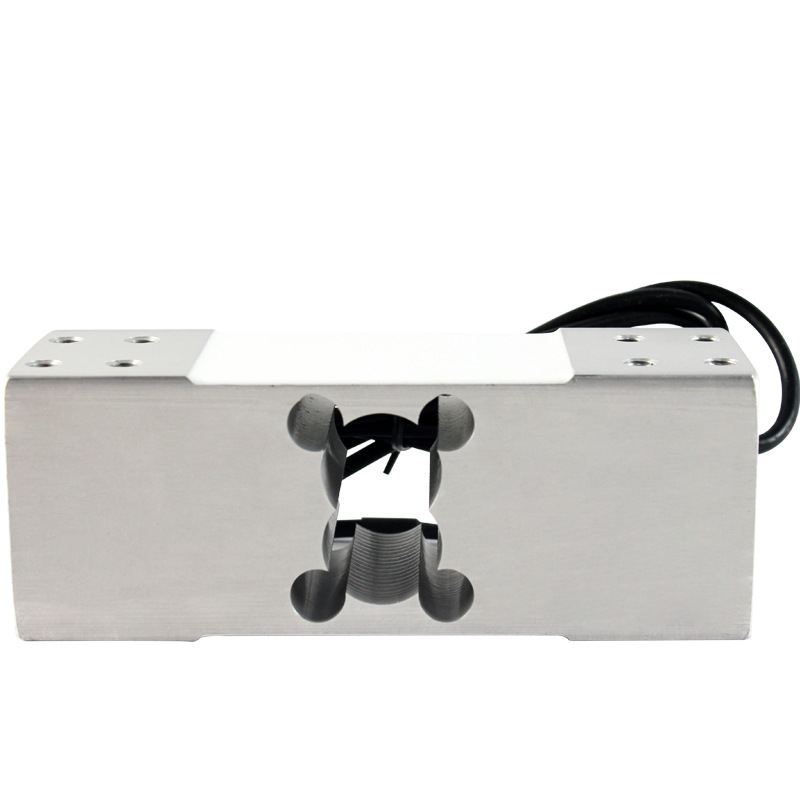

LC3540
SAINTBOND
Dimensions:
Installation Method:
Technical Parameter:
Rated Load: | 50/60/100/150/200/250/300/500/600/750/800/1000/1200kg | ||
Sensitivity: | (2.0±0.1%) mV/V | Insulation Resistance: | ≥5000MΩ |
Combined Error: | ±0.03% F.S | Operating Temp. Range: | -30~+70℃ |
Creep Error(30min): | ±0.03% F.S | Max. Safe Over Load: | 150%F.S |
Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
Input Resistance: | 385±5Ω | Sealing Class: | IP65 |
Output Resistance: | 353±2Ω | Element Material: | Aluminum |
Citation: | GB/T7551-2008/ OIML R60 | Cable: | Length=L:2m |
| Product name | LC3540 Weighing Scale Load Cell NA3 Aluminum Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
