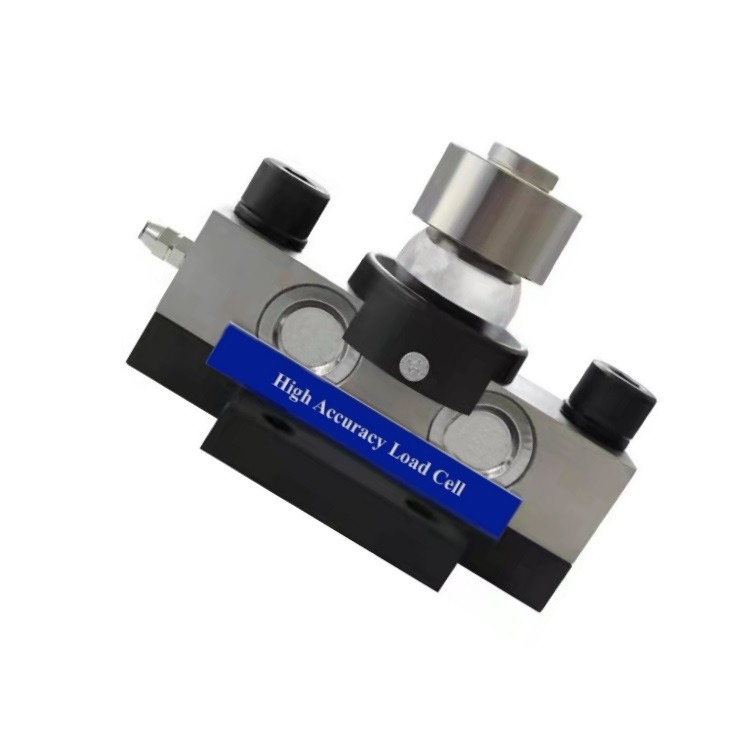

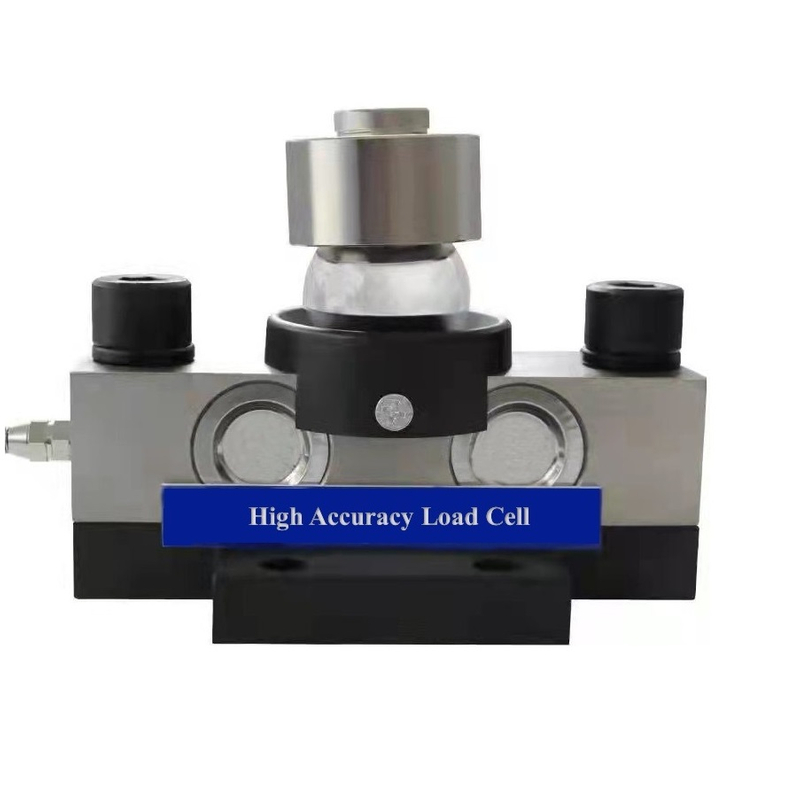

LC108G
SAINTBOND

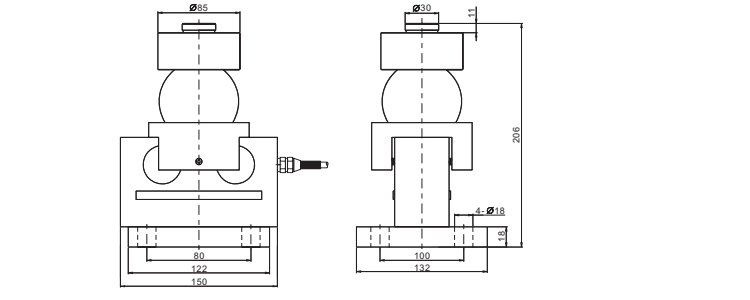

Dimensions:
Product Characteristics:
lLC108G load cells are available in the capacities 10t to 30t.
lAlloy steel construction, nickel plated,hermetically welded,oil-proof, waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
lDual shear beam, suitable for electronic truck scales,railway scales and other electronic weighing devices.
Technical Parameter
Rated Load: | 10/20//30t | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min): | ±0.01% F.S | Recommend Excitation Voltage: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
TCO: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
TC Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel |
Input Resistance: | 750±5Ω | Cable: | Length= 12m |
Output Resistance: | 700±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Application: | Truck scale |
| Product name | LC108G 1000kg Loadcell Weighing Sensor Double Ended Shear Beam Type Tool Steel Scales And Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
