HM9E
SAINTBOND
Short Description:
◎Nickel plated alloy steel IP68 dual shear beam load cell；
◎High accuracy；
◎Suitable for truck and track scales and other heavy weighing devices；
◎Hermetically sealed；
Available models：
Capacity | Accuracy | Full article description |
50 Klb | C3 | HM9E-C3-50K-12B |
65 Klb | C3 | HM9E-C3-65K-12B |
100 Klb | C3 | HM9E-C3-100K-12B |
125 Klb | C3 | HM9E-C3-125K-12B |
200 Klb | C3 | HM9E-C3-200K-12B |
Specification：

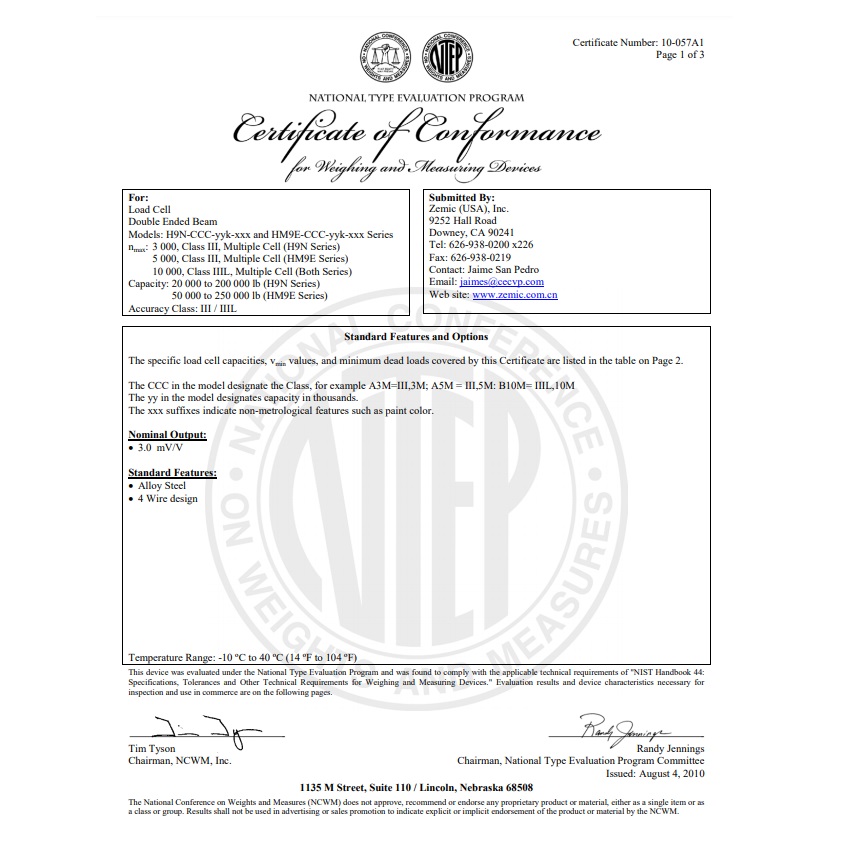

Accuracy class | OIML R60 C3 | |||
Output sensitivity ( = FS ) | mV/V | 3.0 ± 0.003 | ||
Maximum capacity ( Emax ) | klb | 50, 65, 100, 125, 200 | ||
Maximum number of load cell intervals ( nLC ) | 3000 | |||
Ratio of minimum LC verification interval Y = Emax / vmin | 10000 | |||
Combined error | %FS | ± 0.023 | ||
Minimum dead load | of Emax | 0% | ||
Safe overload | of Emax | 150 % | ||
Ultimate overload | of Emax | 300 % | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | ||
Excitation maximum | V | 18( DC ) | ||
Input resistance | Ω | 700 ± 7 | ||
Output resistance | Ω | 703 ± 4 | ||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Nickel plated alloy steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ C | II3G Ex nL IIC T4 | |
Dimensions in mm：
Dimension | A | B | C | ΦD | ΦE | RG | RH | T | H1 | H2 | K |
50klb~125klb | 260.5 | 215.9 | 101.6 | 61 | 52.32 | 25.4 | 25.4 | 7 | 76 | 76.2 | 55.9 |
(10.26) | (8.50) | (4.00) | (2.40) | (2.06) | (1.00) | (1.00) | (0.28) | (2.99) | (3.00) | (2.20) | |
200klb | 304.8 | 254 | 111.8 | 70 | 56.69 | 38.1 | 38.1 | 10 | 86.1 | 86.36 | 63.5 |
(12.00) | (10.00) | (4.40) | (2.76) | (2.23) | (1.50) | (1.50) | (0.39) | (3.39) | (3.40) | (2.50) |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ8mm；
◎Standard cable length: 12m；
◎Shield not connected to element；
